Part of the Ecoburn range featuring the latest and best new Arada heating technology that combines a traditional stove appearance with Ecodesign credentials.

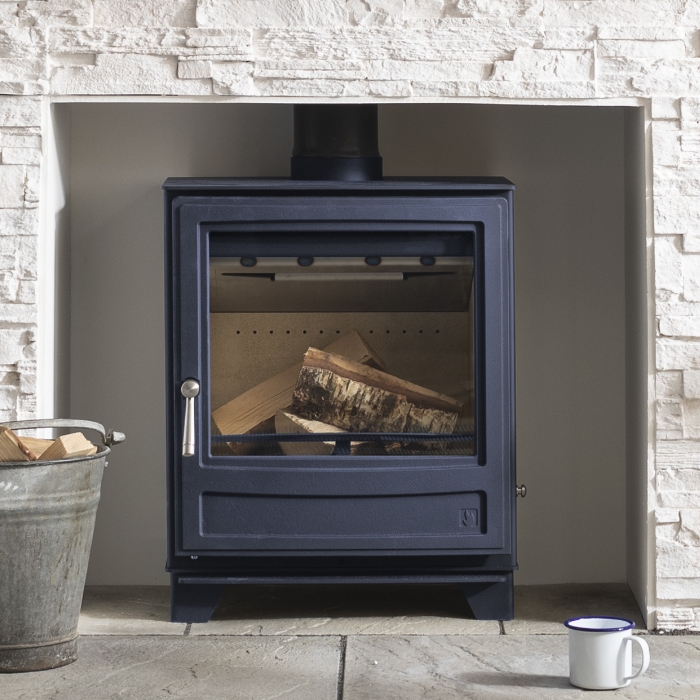

The Arada Ecoburn 5 widescreen log burning stove has a large door glass with a beautiful view of the flames it is a stylish and easy-to-use heating companion for the home. The practical needs of the modern-day stove user all feature on the Ecoburn 5kW stove including a powerful airwash system, flexi-fuel riddling grate, direct air connection and 12mm hearth installation.

Where possible it always pays to room seal a stove as the average chimney drags warm air from a room to outside. The Arada Ecoburn 5 can be room sealed through an external wall to eliminate this heat loss.

Features

  • Externally controlled multifuel riddling grate
  • DEFRA Approved for use in smoke controlled areas
  • Ecodesign compliant
  • Burns wood & solid fuel
  • Non-smoker paint
  • Airwash system for cleaner glass
  • Top or rear 127mm (5") flue outlet
  • Stainless steel ash pan and throat plate
  • Height adjusting legs as standard
  • Large viewing glass
  • Optional rear heat shield for closer positioning to combustibles
  • Floor fixing kit
  • Safety handle available
  • Secondary burn for high efficiency
  • Lifetime warranty
Defra Approved
Ecodesign Compliant
EnergyRatingA+

Additional Specifications

SKU
ECB5WS-S3
Brand
ARADA
Fuel Type
Wood Burning
DEFRA Approved
Yes
Flue Size
127mm
Flue Options
Top or Rear Interchangeable
Width
518mm
Height
631mm
Depth
404mm
Height to Centre of Rear Flue
496mm
Depth From Back to Centre of Top Flue
134mm
Distance To Combustibles - Sides
450mm (450mm with heat shield)
Distance To Combustibles - Rear
650mm (300mm with heat shield)
Efficiency (%)
81.3%
NOx Emission (mg/Nm3-13% O2)
82@13% O2
Weight (Kg)
88Kg
Built From
Steel Body, Cast Iron Door
Style
Contemporary, Timeless, Traditional
Colour
Black, Brown, Cream, Red, Slate
Energy Rating
A+
External Combustion
Yes
12mm Hearth Installation
Yes
Heat Output
5kW
Parts Warranty
1 Year
Warranty
Lifetime
