Description

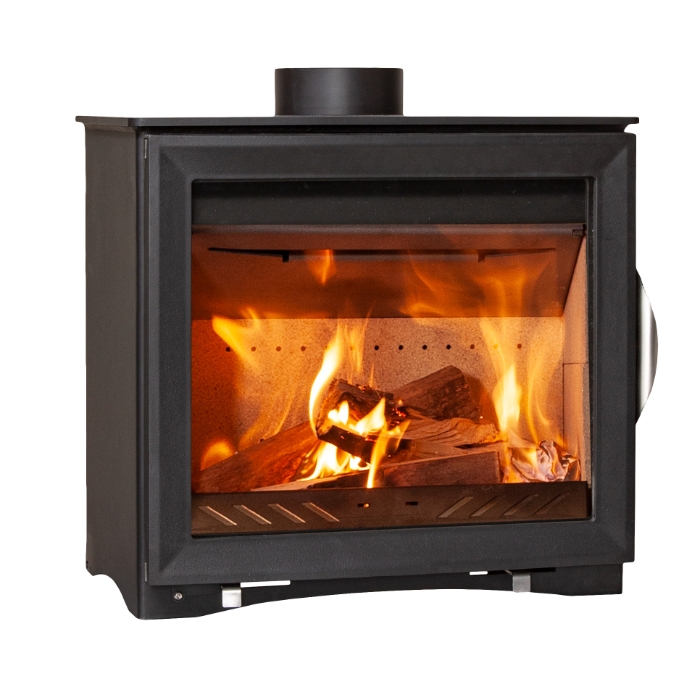

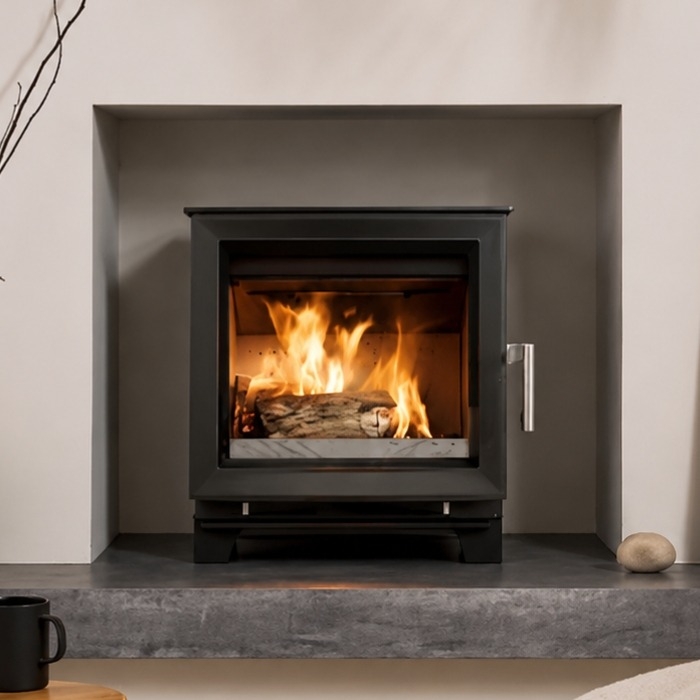

The Arada M Series 5 Widescreen Wood Burning Stove with Cast Door is a stylish and highly efficient wood burning stove designed to bring warmth and a spectacular flame picture to your home. Part of Arada’s new Series 5 range, this 4.9kW wood burning stove combines a traditional cast iron door with a wide viewing window and slim door bezels, giving you an excellent view of the flames. The distinctive bevelled cast iron door frame adds a classic appearance, while the stove’s compact freestanding design makes it an attractive choice for a wide range of interiors.
Designed around Arada’s proven Ecodesign Ready technology, the M Series 5 Widescreen delivers excellent wood-burning performance with an A+ energy efficiency rating and 81.3% efficiency. The preheated airwash system helps keep the large glass panel cleaner during operation, while the advanced combustion system provides efficient burning and reduced emissions compared with an open fire. The stove is wood-only and approved for use in Smoke Control Areas, making it a versatile option for homeowners looking for an efficient wood burning stove in an urban or smoke-controlled location.
The Arada M Series 5 Widescreen Cast Door features a new positive-locking door handle and latch mechanism, cast porcelainite firebox and base liners, and adjustable front feet and rear floor fixing as standard. The stove can be connected to either a top or rear 127mm (5") flue outlet and is compatible with a direct air kit. Feet are now included as standard and raise the stove by approximately 77mm, while optional medium-height stands and log stores are available for additional height and integrated storage. Measuring 525mm high x 525mm wide x 365mm deep, this compact wood burning stove offers an impressive combination of traditional styling, modern efficiency and practical installation options.
Key Features
- Dimensions: 525mm (H) x 525mm (W) x 365mm (D)
- 4.9kW nominal heat output – ideal for heating a variety of living spaces
- 81.3% efficiency for efficient wood burning
- A+ energy efficiency rating
- Wood burning stove – designed exclusively for burning wood
- Cast iron fire door with distinctive bevelled frame styling
- Large widescreen viewing window for an impressive flame picture
- Ecodesign Ready technology for cleaner and more efficient combustion
- Approved for use in Smoke Control Areas
- Preheated airwash system helps keep the stove glass clean
- Top or rear 127mm (5") flue outlet
- Cast porcelainite firebox and base liners
- Direct air compatible
- Adjustable front feet and rear floor fixing kit included
- Feet included as standard, raising the stove height by approximately 77mm
- Optional stand and log store available
- Lifetime guarantee
- Maximum log length: 375mm
- Suitable for installation on a non-constructional hearth
Dimensions & Specs
|
SKU stands for Stock Keeping Unit feel free to quote this reference so we can easily identify the product you're looking at.
|
MCAST-5WS |
|---|---|
|
|
ARADA |
|
|
Wood Burning |
|
DEFRA Approved stoves are those which can legally be used in smoke-controlled areas to burn wood. Using unauthorised fuels can incur penalties and fines.
|
Yes |
|
|
127mm (5") |
|
|
Top / Rear Interchangable |
|
|
536mm inc. handle |
|
|
485mm |
|
|
350mm |
|
|
349mm |
|
|
135mm |
|
The minimum distance required on either side to combustible materials.
|
350mm |
|
The minimum distance required behind to combustible materials.
|
650mm |
|
|
81.3 |
|
|
82 Nmg/m3 |
|
|
87 |
|
|
Steel Body, Cast Iron Door |
|
|
Contemporary, Timeless, Traditional |
|
The energy rating of an appliance determines how efficient it is based on the energy it consumes during typical use. Appliances are tested on a scale of A to G, with A being the most efficient product of its class.
|
A+ |
|
External combustion or a direct air supply allows the stove to take its combustion air from outside the room the stove is installed in.
|
Yes |
|
If yes this stove can be installed onto a 12mm deep non-combustible hearth, without the need for a constructional hearth.
|
Yes |
|
The heat output of a stove or fireplace is conveyed in kilowatts (kW). The larger the room the more output you'll need from your room heater.
|
5kW |
|
Warranty is covered when goods are installed by a competent person, consumable parts that are subject to wear and tear are not covered under the manufacturers warranty.
|
Lifetime |
|
|
Logs |
