Description

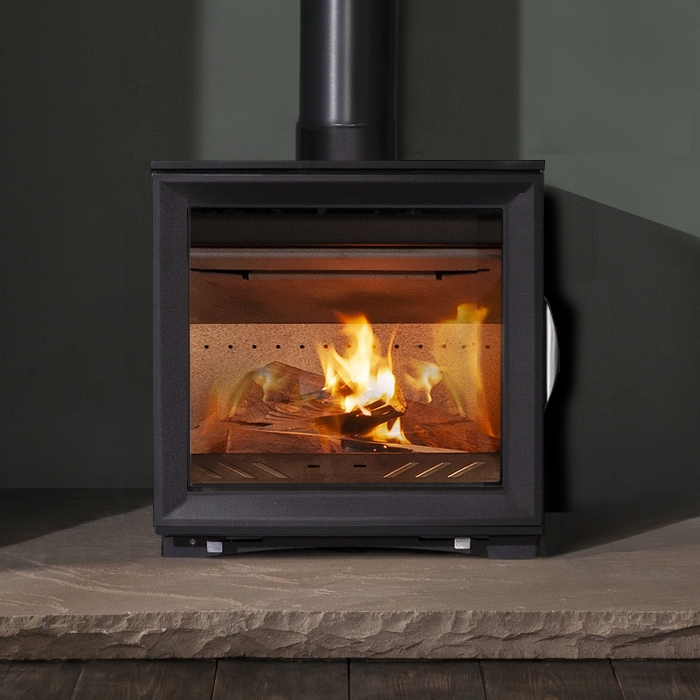

The Arada M Series 5 Wood Burning Stove is a stylish and efficient freestanding wood burner that combines traditional stove styling with modern Ecodesign Ready technology. Featuring a distinctive cast iron door with bevelled-edge and picture-frame styling, the M Series 5 offers an attractive focal point for both traditional and contemporary interiors. Its large viewing window provides an excellent view of the flames, while the compact design makes this 4.9kW wood burning stove an ideal choice for a wide range of living spaces.
Designed for efficient wood burning, the Arada M Series 5 uses advanced combustion technology to deliver excellent fuel efficiency and lower emissions than an open fire or older-generation stove. The preheated airwash system helps maintain a cleaner glass window, allowing you to enjoy the flame picture for longer. This wood-only stove surpasses Ecodesign standards and is approved for use in Smoke Control Areas, making it a practical and environmentally conscious heating solution for suitable UK homes.
The Arada M Series 5 has been updated for Series 5 with a new-style positive-locking door handle and latch mechanism, durable cast porcelainite firebox and base liners, and adjustable front feet with a rear floor fixing kit supplied as standard. The stove features a 127mm (5") top or rear flue outlet and is compatible with a direct air connection. Feet are now included as standard and raise the stove by approximately 77mm, while optional stands and a high log store can increase the stove's height and provide useful integrated storage. Available in a choice of Arada colours, the M Series 5 is backed by a lifetime guarantee for additional peace of mind.
Key Features
- Dimensions: 468mm (W) x 468mm (H) x 363mm (D)
- 4.9kW nominal heat output
- 79.8% energy efficiency
- A energy efficiency rating
- Wood burning stove – designed for wood fuel only
- Cast iron fire door with bevelled edge and picture-frame styling
- Large viewing window for an impressive flame picture
- Ecodesign Ready technology for cleaner and more efficient combustion
- Approved for use in Smoke Control Areas
- Preheated airwash system helps keep the glass cleaner
- 127mm (5") top or rear flue outlet
- Cast porcelainite firebox and base liners
- New-style door handle and latch mechanism
- Direct air compatible
- Adjustable front feet and rear floor fixing kit included
- Feet supplied as standard, raising the stove by approximately 77mm
- Suitable for installation on a non-constructional hearth
- Optional rear heat shield available
- Optional medium-height stand and high log store available
- Multiple colour options
- Lifetime guarantee
Dimensions & Specs
|
SKU stands for Stock Keeping Unit feel free to quote this reference so we can easily identify the product you're looking at.
|
MCAST-5 |
|---|---|
|
|
ARADA |
|
|
Wood Burning |
|
DEFRA Approved stoves are those which can legally be used in smoke-controlled areas to burn wood. Using unauthorised fuels can incur penalties and fines.
|
Yes |
|
|
127mm (5") |
|
|
Top / Rear Interchangable |
|
|
468mm |
|
|
468mm, 545mm with Feet, 668mm with Stand, 868mm with Log Store |
|
|
363mm |
|
|
330mm |
|
|
135mm |
|
The minimum distance required on either side to combustible materials.
|
350mm |
|
The minimum distance required behind to combustible materials.
|
500mm, 250mm with heat shield |
|
|
79.8 |
|
|
95 Nmg/m3 |
|
|
60 |
|
|
Steel Body, Cast Iron Door |
|
|
Contemporary, Timeless |
|
|
Black |
|
The energy rating of an appliance determines how efficient it is based on the energy it consumes during typical use. Appliances are tested on a scale of A to G, with A being the most efficient product of its class.
|
A |
|
External combustion or a direct air supply allows the stove to take its combustion air from outside the room the stove is installed in.
|
Yes |
|
If yes this stove can be installed onto a 12mm deep non-combustible hearth, without the need for a constructional hearth.
|
Yes |
|
The heat output of a stove or fireplace is conveyed in kilowatts (kW). The larger the room the more output you'll need from your room heater.
|
5kW |
|
Warranty is covered when goods are installed by a competent person, consumable parts that are subject to wear and tear are not covered under the manufacturers warranty.
|
Lifetime |
|
|
Logs |
